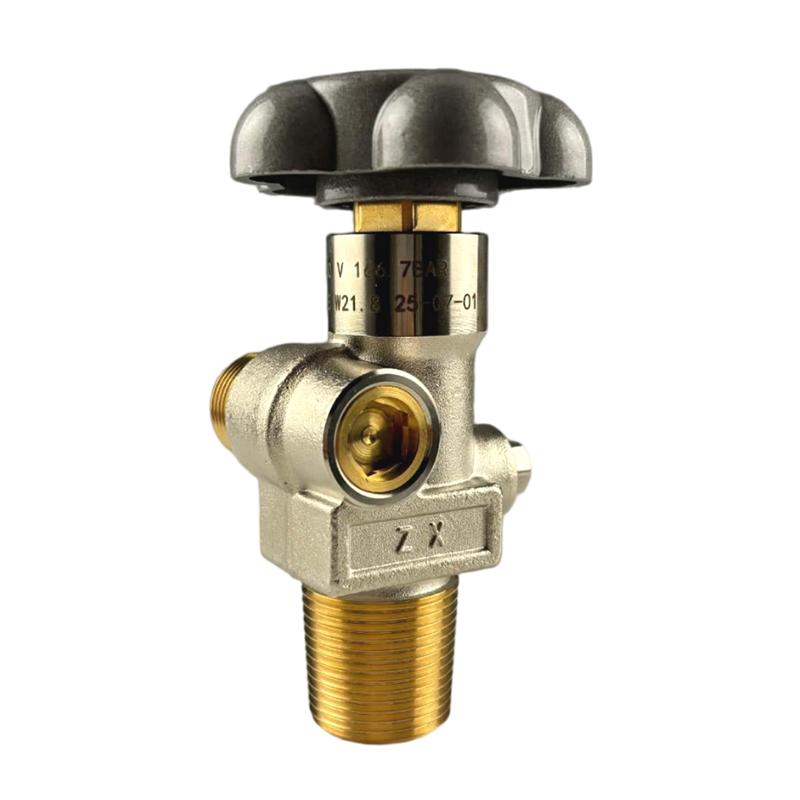

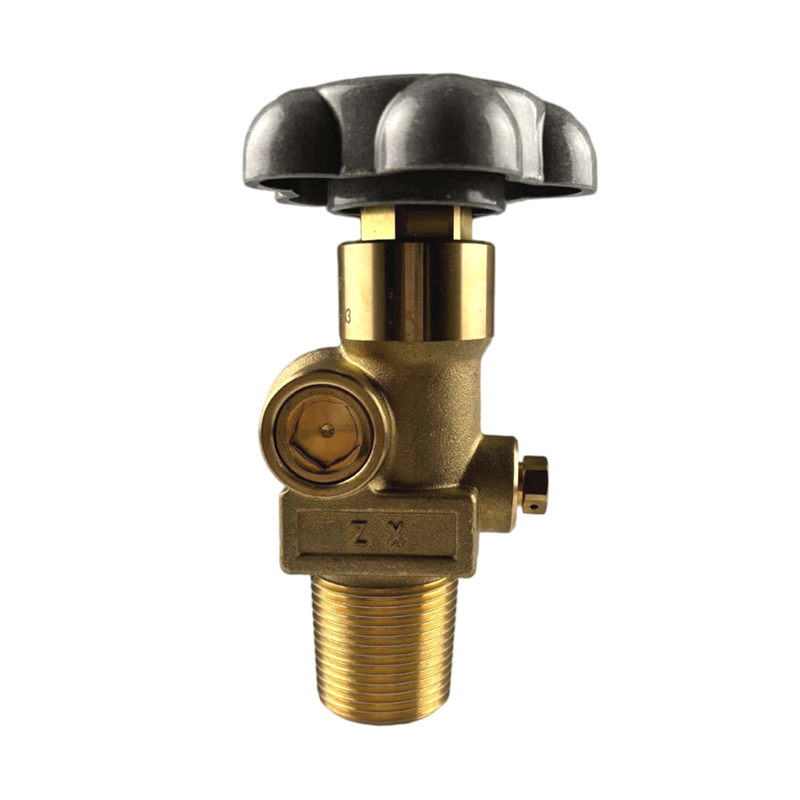

VEP Series

Residual Pressure device available for preventing external contamination，
High leak integrity performance through 100% tests.
Availability:
Quantity:
Inquire Add to Basket

VEP Series
Specification
Work Pressure:150bar/166.6bar/200bar
DN:4mm
Service Temperature:-40℃ to +65℃
Standard:EN ISO 15996
Certification:TPED
Options:Dip Tube, Cap Logo, Nickel/Chrome Plating
Inlet Thread:25E, PZ27.8, 3/4-14NGT, Other Standard Thread upon request



SeriesOutlet ThreadGas TypeBursting DiskRPV
VEP21810W21.8-14CO2/Ar/He✓✓
VEP24310W24.32-14N2✓✓
VEP24210W24X2Inert Gas✓✓
VEP27210W27X2Air✓✓
VEP5-810G5/8-14SO2/CI2/HCI✓✓
VEP5-820G5/8-14-INTAir/O2✓✓
VEP3-410G3/4-14O2×✓
VEP1-210G1/2-14SO2/NH3✓✓
VEP32010CGA320 / 0.825-14NGO-RH-EXTCO2✓✓
VEP54010CGA540 / 0.903-14NGO-RH-EXTO2✓✓


Specification

Related Products

VEA Series
VEA Series

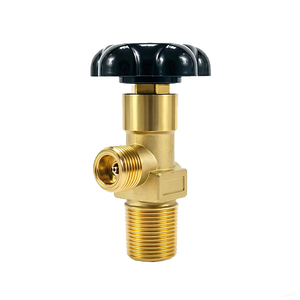

VEB Series
