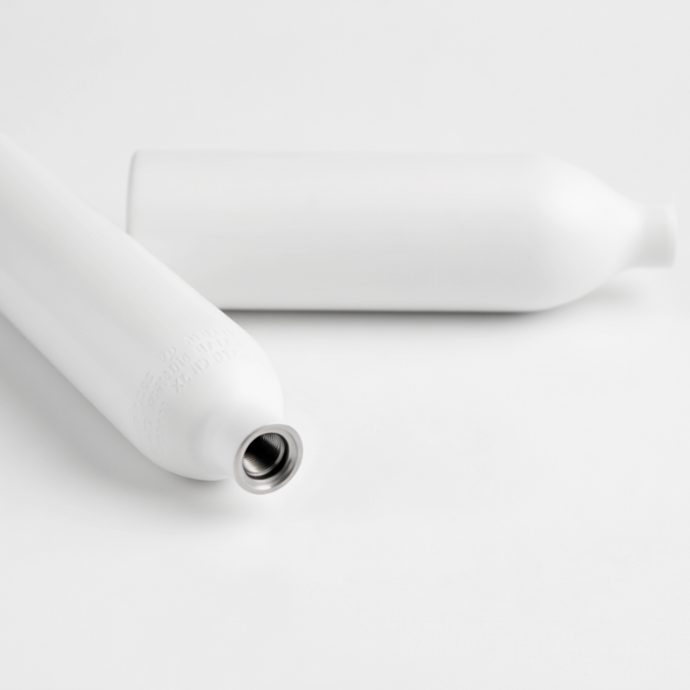

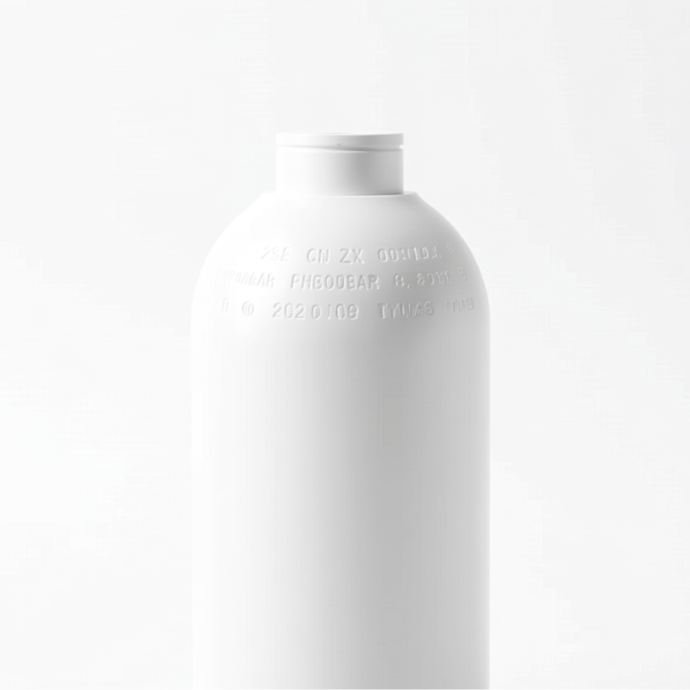

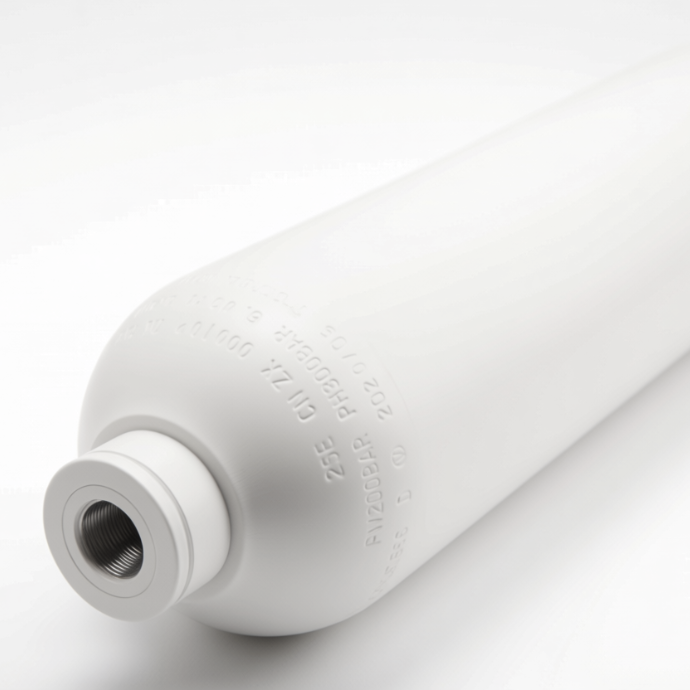

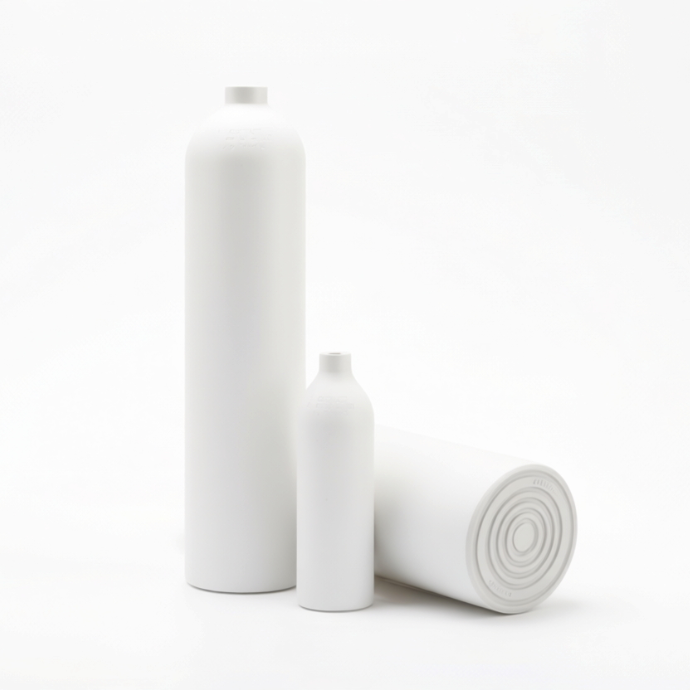

Ningbo Zhengxin (ZX) Medical Cylinders represent the pinnacle of high-pressure gas containment for the global healthcare sector.
Manufactured from premium AA6061-T6 aluminum alloy, they feature a seamless, highly corrosion-resistant construction.
Ranging from compact 0.29L portable units to large 54L configurations, these cylinders are produced under strict ISO 9001 and ISO 13485 quality management systems.
Each cylinder undergoes specialized ultrasonic cleaning to meet stringent medical oxygen service requirements, ensuring safe and reliable life-support delivery.
Advantages:
Lightweight Mobility: Significantly lighter than steel, reducing daily handling fatigue for paramedics, hospital staff, and ambulatory patients.
Medical-Grade Cleanliness: Ultrasonic washing eradicates hydrocarbon contamination, making it instantly ready for oxygen service.
Uncompromising Safety: 100% hydrostatic pressure tested and inherently safe for use in MRI suites with no magnetic risks.
Extended Asset Life: Excellent internal corrosion resistance prevents scaling, which protects delicate respiratory regulators and lowers maintenance costs.
Global Supply Chain Ready: Clear EU and international compliance pathways allow for smooth integration into global medical device and distributor programs.
| Material: | AA6061-T6 |
| Specification: | ISO 7866 compliant |
| TPED Pi (2010/35/EU) certified | |
| Volume: | 0.29L-54L |
| Diameter: | 60, 70, 89, 101, 111, 120, 140, 152, |
| 175, 184, 203, 229, 250 mm | |
| Thread: | <3L with 17E |
| ≥3L with 25E | |
| Finish: | white powder coating (standard finish) |
| brushed polish / clear coating (optional) | |
| Graphic: | label / silkscreen logo (optional) |
| Accessories: | valve / carrying handle installed upon request |
| Model | Work Pressure (bar) | Test Pressure (bar) | Water Volume (l) | O₂ Capacity (l) | Diameter (mm) | Length (mm) | Weight (kg) | Thread |
| TPED-M0.3 | 200 | 300 | 0.3 | 59.22 | 60 | 200 | 0.47 | 17E |
| TPED-M0.5 | 200 | 300 | 0.5 | 98.69 | 70 | 240 | 0.74 | 17E |
| TPED-M1 | 200 | 300 | 1.0 | 197.38 | 101 | 230 | 1.57 | 17E |
| TPED-M2 | 200 | 300 | 2.0 | 394.77 | 101 | 400 | 2.55 | 17E |
| TPED-M3 | 200 | 300 | 3.0 | 592.15 | 111 | 490 | 3.73 | 25E |
| TPED-M4 | 200 | 300 | 4.0 | 789.54 | 111 | 630 | 4.70 | 25E |
| TPED-M5 | 200 | 300 | 5.0 | 986.92 | 140 | 535 | 6.54 | 25E |
| TPED-M10 | 200 | 300 | 10.0 | 1973.85 | 175 | 668 | 12.83 | 25E |
| TPED-M20 | 200 | 300 | 20.0 | 3947.69 | 203 | 940 | 23.29 | 25E |
| TPED-M30 | 200 | 300 | 30.0 | 5921.54 | 229 | 1110 | 34.57 | 25E |
| TPED-M40 | 200 | 300 | 40.0 | 7895.39 | 250 | 1230 | 45.54 | 25E |
| TPED-M50 | 200 | 300 | 50.0 | 9869.23 | 250 | 1500 | 54.64 | 25E |
| Custom dimensions / specifications available upon request | ||||||||
