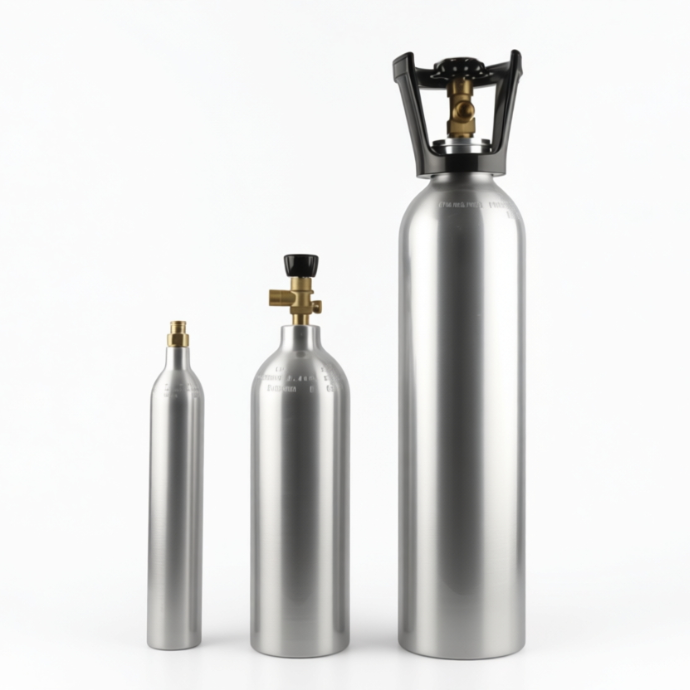

Manufactured from high-strength AA6061-T6 aluminum alloy, Ningbo Zhengxin (ZX) TPED CO₂ cylinders offer an optimal balance of durability and portability.
Ranging from 0.3L to 21.3L, these seamless cylinders undergo rigorous 100% hydrostatic testing to guarantee structural integrity.
Bearing the mandatory TPED "Pi" (π) mark, they are fully approved for legal transport and refilling across the European Economic Area (EEA).
To streamline your sourcing, we offer full OEM/ODM customization, including custom surface finishes, branding, and pre-installed valve assemblies.
TPED Beverage CO₂ Cylinder Product advantages
1.EU Market Ready: TPED certification ensures a clear, legal compliance pathway for European distribution.
2.Lightweight Ergonomics: Up to 40% lighter than traditional steel cylinders, reducing shipping costs and making manual handling easier for hospitality staff.
3.Pristine Beverage Quality: Oxidation-resistant interior prevents rust, safeguarding the food-grade purity and taste profile of the dispensed beverages.
4.Exceptional Durability: Cold-extruded seamless design provides high fatigue resistance and a long service life, even in humid cellar environments.
5.Brand Growth: Highly customizable aesthetics (labels, silkscreen logos, coatings) to perfectly support your private-label and OEM programs.
| Material: | AA6061-T6 |
| Specification: | ISO 7866 compliant |
| TPED Pi (2010/35/EU) certified | |
| Volume: | 0.3L- 21.3L |
| Diameter: | 60, 70, 89, 111, 120, 140, 152, 159, 203 mm |
| Thread: | ≤2.67L with 17E / M18x1.5 |
| >2.67L with 25E / M25x2 | |
| Finish: | brushed polish (standard finish) |
| powder coating / clear coating (optional) | |
| Graphic: | shrink sleeve / label / silkscreen logo (optional) |
| Accessories: | valve / carrying handle installed upon request |
| Model | Work Pressure (bar) | Test Pressure (bar) | Water Volume (l) | CO₂ Capacity (kg) | Diameter (mm) | Length (mm) | Weight (kg) | Thread |
| TPED-B0.45 | 166.7 | 250 | 0.6 | 0.45 | 60 | 330 | 0.62 | M18x1.5 |
| TPED-B0.75 | 166.7 | 250 | 1.0 | 0.75 | 89 | 268 | 1.18 | M18x1.5 |
| TPED-B1 | 166.7 | 250 | 1.34 | 1.0 | 89 | 345 | 1.46 | 17E |
| TPED-B1.5 | 166.7 | 250 | 2.0 | 1.5 | 111 | 340 | 2.38 | 17E |
| TPED-B2 | 166.7 | 250 | 2.67 | 2.0 | 111 | 442 | 2.89 | 17E |
| TPED-B2A | 166.7 | 250 | 2.67 | 2.0 | 120 | 380 | 3.03 | 17E |
| TPED-B3 | 166.7 | 250 | 4.0 | 3.0 | 140 | 420 | 4.49 | 25E |
| TPED-B4 | 166.7 | 250 | 5.4 | 4.0 | 140 | 532 | 5.47 | 25E |
| TPED-B5 | 166.7 | 250 | 6.7 | 5.0 | 152 | 570 | 6.73 | 25E |
| TPED-B6 | 166.7 | 250 | 8.0 | 6.0 | 152 | 656 | 7.73 | 25E |
| TPED-B10 | 166.7 | 250 | 13.4 | 10.0 | 203 | 636 | 14.19 | 25E |
| TPED-B15 | 166.7 | 250 | 20.0 | 15.0 | 203 | 900 | 19.09 | 25E |
| Custom dimensions / specifications available upon request | ||||||||
