In the global gas equipment supply chain, compliance with international standards is not just a regulatory requirement—it is the foundation of operational safety and market access.
Two of the most frequently referenced international standards for gas cylinder valves are ISO 10297 and ISO 17879. While both govern the safety and performance of valves, they apply to completely different mechanical designs and operational logic. Misinterpreting their boundaries can lead to costly compliance failures or rejected type approvals.
This comprehensive guide breaks down the core technical distinctions, testing protocols, and real-world application boundaries between ISO 10297 and ISO 17879.
ISO 10297 (with the latest edition being ISO 10297:2024) is the overarching international standard titled "Gas cylinders — Cylinder valves — Specification and type testing." It serves as the primary benchmark for traditional, manually operated valves and highly integrated valve systems.
ISO 10297 applies to refillable transportable gas cylinder valves that handle compressed, liquefied, or dissolved gases. This standard covers:
l Standard Manual Valves: Valves operated via an external handwheel or lever to mechanically open and close the internal orifice.
l Valves with Integrated Pressure Regulators (VIPR): Advanced assemblies where the valve mechanism is combined with a pressure-reducing system.
l Main Valves for Cylinder Bundles: High-capacity valves serving multiple interconnected cylinders.
Crucially, ISO 10297 explicitly excludes self-closing valves from its scope.
Based on its extensive type testing schedule, ISO 10297 certification requires a valve prototype to undergo a grueling sequence of up to 20 tests designed for manual and complex assemblies:
Hydraulic and Endurance Tests: The valve body must withstand hydraulic proof-pressure testing. Furthermore, the manual operating mechanism must endure thousands of complete opening and closing cycles.
Excessive Torque Tests: Unique to manual valves, this ensures that the valve's spindle and seating will not fail when an operator applies excessive rotational force.
Flame Impingement Test: A specialized test to verify structural integrity during the initial stages of a fire exposure.
In direct contrast, ISO 17879 (specifically ISO 17879:2017) was established to fill a specific technological gap for automated systems.
A self-closing valve does not utilize a handwheel. Instead, it relies on an internal biasing mechanism (typically a high-tension spring) to keep the valve closed. It only opens when an external device—such as a quick-connector or filling adapter—is physically inserted, depressing an internal pin. The moment this external force is removed, the valve instantly snaps shut.
Specialized Testing Regimes
Because self-closing valves lack manual handwheels and rely on mechanical coupling, ISO 17879 features a streamlined but highly focused 12-test schedule:
Extreme Temperature Leak Tightness: The standard heavily emphasizes strict internal and external leak testing sequences performed consecutively at room temperature, -40°C, -20°C, and +65°C.
Actuation Endurance Tests: The internal spring and pin assembly are subjected to rigorous cyclic testing to withstand the wear of frequent adapter connections.
Impact or Drop Testing: Given their common use in portable and quick-swap applications, these valves must pass specific drop or impact tests to ensure a minor fall does not compromise the passive seal.
To assist engineering and procurement teams, the table below highlights how these two standards diverge on fundamental technical parameters based on their testing schedules.
Technical Parameter | ISO 10297 | ISO 17879 |
Primary Actuation Mode | Manual rotation (Handwheel / Lever) | Mechanical depression via external adapter/pin |
Fail-Safe Logic | Remains in its last state (open or closed) | Default state is strictly "Closed" |
Key Type Tests (Differences) | Excessive torque, Flame impingement, VIPR specific endurance | Focuses on Impact/drop testing without manual torque checks |
Key Type Tests (Similarities) | Hydraulic pressure, Endurance, Extreme temperature leak testing (-40°C to +65°C), Oxygen surge testing | |

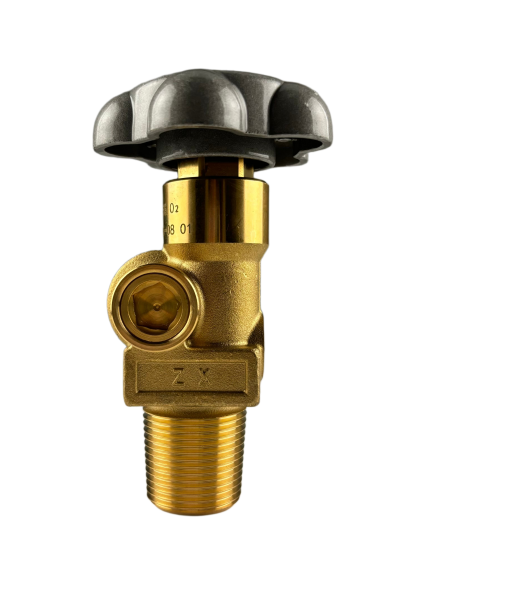

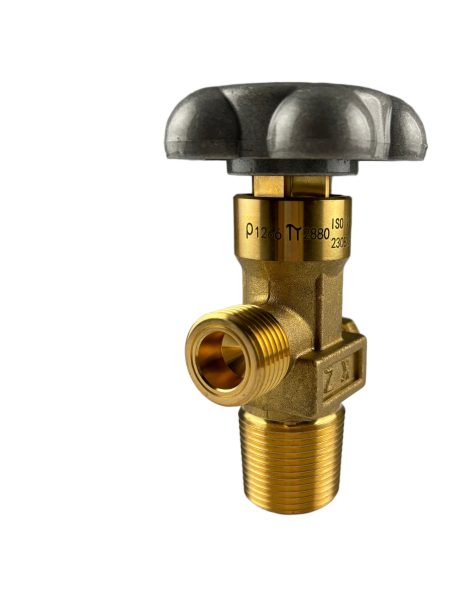

For a standard industrial cylinder designed to hold Argon or Nitrogen at 200 bar or 300 bar for heavy-duty welding, you need high flow rates and abuse resistance. A heavy-duty brass manual valve compliant with ISO 10297 is required. The standard's excessive torque and flame impingement tests ensure the valve survives industrial environments.

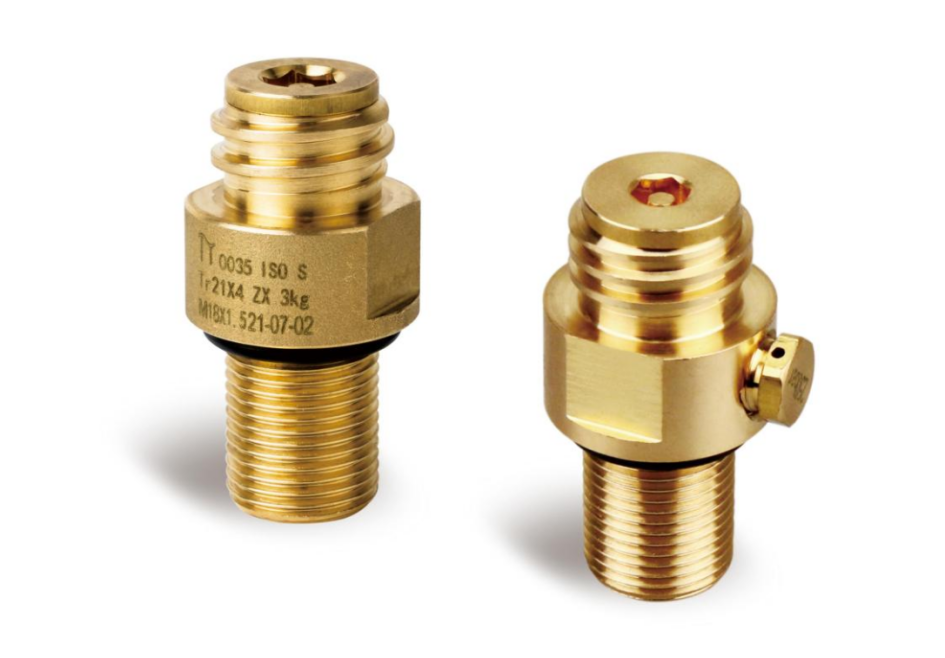

For low-volume cylinders containing calibration gases or commercial CO2 for beverage carbonation appliances, non-technical users require quick, tool-free replacement. These systems utilize a pin-actuated valve certified under ISO 17879, ensuring instant, leak-free isolation upon disconnection.
ISO 10297 and ISO 17879 are not competing standards; they are parallel pathways tailored for distinct mechanical architectures.
Select ISO 10297 for manual, high-capacity, and VIPR gas delivery systems where human control dictates the flow.
Select ISO 17879 for automated, quick-connect, spring-loaded systems where immediate, passive isolation is required.
