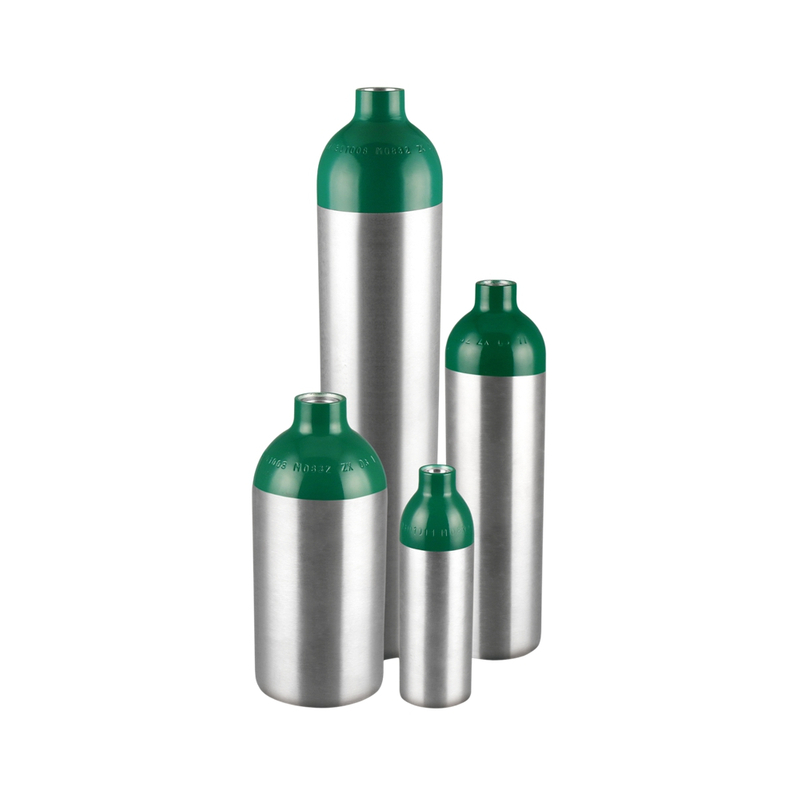

| Material: | AA6061-T6 |
| Specification: | DOT-3AL compliant & certified |
| Volume: | 0.28L- 21.4L |
| Thread: | ≥M60 with 1.125-12 UNF |
| ＜M60 with 0.750-16 UNF | |
| Finish: | brushed body with green crown (standard finish) |
| clear coating (optional) | |
| Graphic: | label / silkscreen logo (optional) |
| Accessories: | valve / carrying handle installed upon request |
| Model | Work Pressure (bar) | Test Pressure (bar) | Water Volume (l) | O₂ Capacity (cu ft) (l) | Diameter (mm) | Length (mm) | Weight (kg) | Thread | |
| ML6 | 2015 | 300 | 1.2 | 6.0 | 170 | 111.3 | 227 | 1.53 | 0.750-16 UNF |
| M7 | 2015 | 300 | 1.4 | 7.0 | 197 | 111.3 | 255 | 1.66 | 0.750-16 UNF |
| M9 | 2015 | 300 | 1.7 | 8.4 | 239 | 111.3 | 280 | 1.81 | 0.750-16 UNF |
| MD | 2015 | 300 | 2.9 | 14.5 | 411 | 111.3 | 428 | 2.58 | 0.750-16 UNF |
| ME | 2015 | 300 | 4.6 | 22.6 | 641 | 111.3 | 654 | 3.75 | 0.750-16 UNF |
| M2 | 2216 | 300 | 0.3 | 1.7 | 47 | 63.5 | 170 | 0.38 | 0.750-16 UNF |
| M4 | 2216 | 300 | 0.7 | 4.1 | 116 | 81.5 | 235 | 0.87 | 0.750-16 UNF |
| M6 | 2216 | 300 | 1.0 | 5.7 | 162 | 81.5 | 300 | 1.04 | 0.750-16 UNF |
| M22 | 2216 | 300 | 3.9 | 21.4 | 607 | 133.4 | 320 | 3.91 | 0.750-16 UNF |
| M60 | 2216 | 300 | 10.5 | 57.3 | 1622 | 184.2 | 585 | 10.00 | 1.125-12 UNF |
| M90 | 2216 | 300 | 15.7 | 85.9 | 2433 | 184.2 | 831 | 14.21 | 1.125-12 UNF |
| M122 | 2216 | 300 | 21.4 | 116.7 | 3305 | 203.2 | 939 | 18.58 | 1.125-12 UNF |
| M7.6 | 3000 | 300 | 1.0 | 7.6 | 214 | 81.5 | 325 | 1.44 | 1.125-12 UNF |
| M7.7 | 3000 | 300 | 1.0 | 7.7 | 217 | 111.3 | 219 | 1.97 | 1.125-12 UNF |
| M12 | 3000 | 300 | 1.5 | 11.3 | 321 | 111.3 | 290 | 2.48 | 1.125-12 UNF |
| M20 | 3000 | 300 | 2.6 | 19.5 | 553 | 111.3 | 448 | 3.63 | 1.125-12 UNF |
| M32 | 3000 | 300 | 4.1 | 30.5 | 863 | 111.3 | 660 | 5.14 | 1.125-12 UNF |
| M74 | 3000 | 300 | 10.0 | 73.8 | 2091 | 175 | 664 | 13.11 | 1.125-12 UNF |
| Custom dimensions / specifications available upon request | |||||||||
